Neuroscience |
with external, Ni-Cr electrode MExt-UGx ---   |
142
Gloucester Place
London, NW1 6DT, U.K. Tel +44 (0) 207 723 1202 Fax +44 (0) 207 723 3013 |
|
Neuroscience |
with external, Ni-Cr electrode MExt-UGx --- |
142
Gloucester Place
London, NW1 6DT, U.K. Tel +44 (0) 207 723 1202 Fax +44 (0) 207 723 3013 |
-
-
| MExt-UGx Specifications | |
| Membrane (G) | GFE 9 from Gambro Ltd. (10-15 KDa cutoff; 0.22 mm o.d.) |
| Membrane length | U-shape, x mm U heigth (2 mm standard) |
| Stainless steel body | 15 mm in length (0.8 mm o.d.) |
| Inlet & outlet | Polyethylene tubes (0.61 mm
o.d. & 0.28 mm i.d.)
50 and 30 mm in length for inlet and outlet, respectively |
| Internal silica tubes | 150 µm o.d. & 75 µm i.d. |
| Electrode | Insulated Ni-Cr wire (60 µm diameter) |
| Electrode Connector | 1 mm gold-plated male pin |
| Applications |

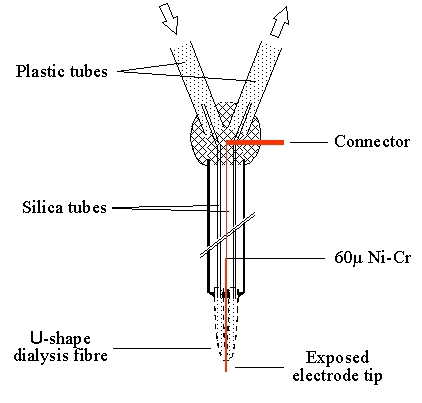

| Microdialysis with recording of evoked potentials or electrical activity of a very discrete region. The design illustrated above was designed to monitor the electrophysiology of a small brain nuclei while applying drugs to its upper surface (e.g. with minimal damage to the structure). |
