Concentric microdialysis probes
(with external recording electrode
and microcannula)
142   Gloucester   Place
London, NW1 6DT, U.K.
Tel +44 (0) 207 723 1202
Fax +44 (0) 207 723 3013

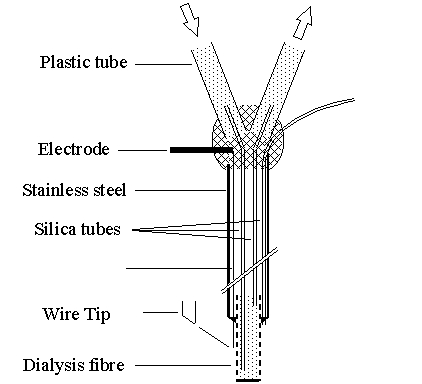

MExt.C-Hx  Specifications
 Membrane (H)  AN69 from Hospal Ltd. (35-40 KDa cutoff; 0.32 mm o.d.)
 Probes using other membranes can be supplied
 (subject to availability)
 Membrane length  x mm (2 mm standard)
 Stainless steel body   15 mm in length (0.8 mm o.d.)
 Inlet & outlet  Polyethylene tubes (0.61 mm o.d. & 0.28 mm i.d.)
 50 and 30 mm in length for inlet and outlet, respectively
 Note: Probes with stainless steel inlet/oulet can also be supplied.
 Internal silica tubes  150 µm o.d. & 75 µm i.d.
Electrode  External insulated Ni-Cr wire (60 µm diameter)
Connector  1 mm gold-plated male pin
Microcannula  Silica tube (150 µm o.d. & 75 µm i.d.)
Microdialysis with recording of evoked potentials or local spontaneous electrical activity in the same brain region;
Separate, accurate application of drugs, including those of high molecular weight (e.g. peptides).
