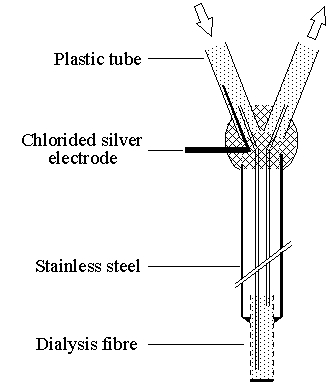

| ME-Hx Specifications | |
| Membrane (H) | AN69 from Hospal Ltd.
(35-40 KDa cutoff; 0.32 mm o.d.)
Probes using other membranes can be supplied (subject to availability) |
| Membrane length | x mm (2 mm standard) |
| Stainless steel body | 15 mm in length (0.8 mm o.d.) |
| Inlet & outlet | Polyethylene tubes (0.61 mm o.d. & 0.28 mm i.d.)
50 and 30 mm in length for inlet and outlet, respectively |
| Internal silica tubes | 150 µm o.d. & 75 µm i.d. |
| Electrode | Internal chlorided silver wire |
| Connector | 1 mm gold-plated male pin |
| Applications |
| Microdialysis combined with
recording of EEG and extracellular
direct current (DC) potential within the same brain region. |
