Neuroscience |
M0-UGx (standard plastic inlet & outlet) ---   |
142
Gloucester Place
London, NW1 6DT, U.K. Tel +44 (0) 207 723 1202 Fax +44 (0) 207 723 3013 |
|
Neuroscience |
M0-UGx (standard plastic inlet & outlet) --- |
142
Gloucester Place
London, NW1 6DT, U.K. Tel +44 (0) 207 723 1202 Fax +44 (0) 207 723 3013 |
-

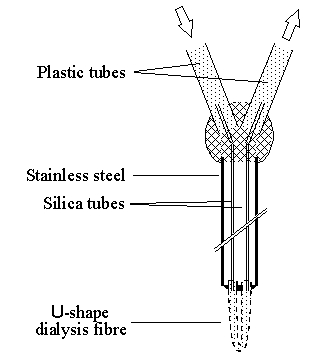

| M0-UGx Specifications | |
| Membrane (G) | GFE 9 from Gambro Ltd. (10-15 KDa cutoff; 0.22 mm o.d.) |
| Membrane length | U-shape, x mm U heigth (2 mm standard) |
| Stainless steel body | 15 mm in length (0.8 mm o.d.) |
| Inlet & outlet | Polyethylene tubes (0.61 mm
o.d. & 0.28 mm i.d.)
50 and 30 mm in length for inlet and outlet, respectively |
| Internal silica tubes | 150 µm o.d. & 75 µm i.d. |
| Applications |
| Conventional microdialysis
with U-shape fibre.
May be used when optimal time resolution is required. |
